When I visited solar shops across multiple cities in Pakistan and physically measured 585W panels myself, I found one consistent answer: a 585-watt solar panel is approximately 7.5 feet in length and 3.7 feet in width.
I also found that A 585-watt solar panel is a high-efficiency module typically used for large-scale residential and commercial projects, such as tubewells, heavy loads, and machinery.

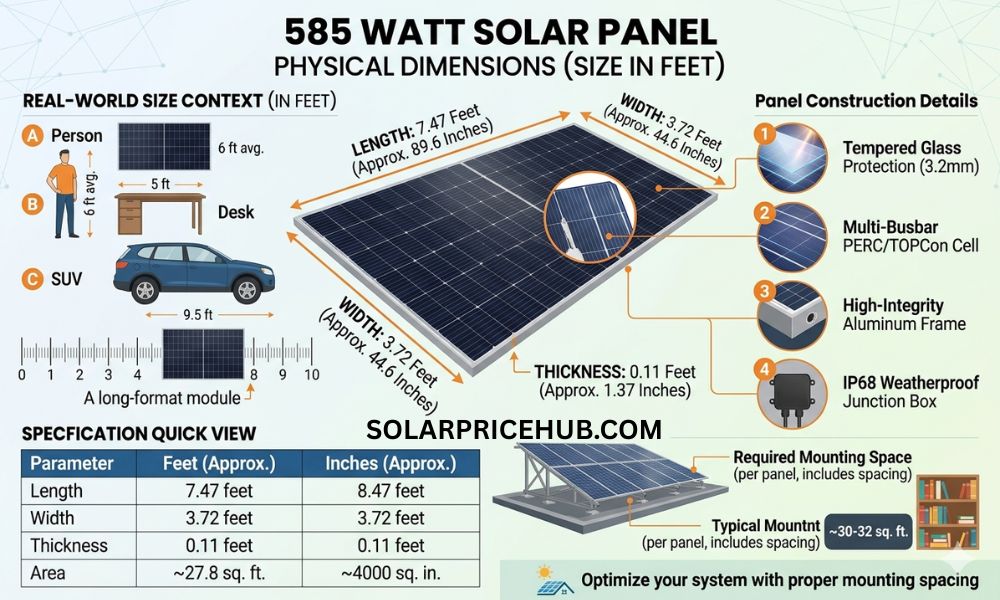

A 585 Watt Solar Panel Size in Feet, approximately 7.5 feet in length by 3.7 feet in width, is used worldwide. It is the biggest with a high-wattage solar panel in the world.
A 585 Watt Solar Panel is the biggest and highest-wattage solar panel that can generate enough power to run many appliances at home. It can generate 585 watts at a time, which is enough to run some fans, lights, chargers, and an air water cooler.
A 585 Watt Solar Panel generates 3000 to 3500 watts in a day, that are equal to 3 units of electricity and about 100 units in a month.
A 585 Watt Solar Panel can save 70 to 80 rupees daily by generating free solar energy and 2500 rupees in a month. If yoy want to run AC on free energy, then install 4 solar panels of 585 watts.
| Unit Of 585W Solar Panel | Dimensions (L × W) |
| 1. Feet | 7.5 ft × 3.7 ft |
| 2. Inches | 90 in × 45 in |
| 3. Millimeters | 2278 mm × 1134 mm |
Quick Answer: What Is the Size of a 585 Watt Solar Panel in Feet?
| Unit | Length | Width | Thickness |
|---|---|---|---|
| Feet | 7.47 ft | 3.72 ft | 0.11 ft |
| Inches | 89.69 in | 44.65 in | 1.38 in |
| Millimeters | 2278 mm | 1134 mm | 35 mm |
| Meters | 2.278 m | 1.134 m | 0.035 m |
Total area: approximately 27.8 square feet per panel.
These are the standard dimensions used by top manufacturers, including Jinko Solar, Longi, JA Solar, Canadian Solar, and Trina Solar.
Why Is Knowing the Exact Size Important?
Before you buy a single panel, you need to know the exact size. Here is why this matters practically:
- Roof space planning – One 585W panel takes up about 28–30 sq ft, including spacing. If you want a 10 kW system, you need at least 520 sq ft of usable roof area.
- Structural load – Each panel weighs 30–32 kg. Your roof has to safely carry the combined weight, especially during strong winds.
- Mounting rail spacing – Installers position rails at the 1/4 points of the panel length. Exact dimensions determine rail placement, clamp positions, and row-to-row gaps.
- Inverter and wiring compatibility – The panel’s voltage and current specs must match your inverter rating.
- Permit drawings – Electricity authorities require accurate panel dimensions in installation drawings.

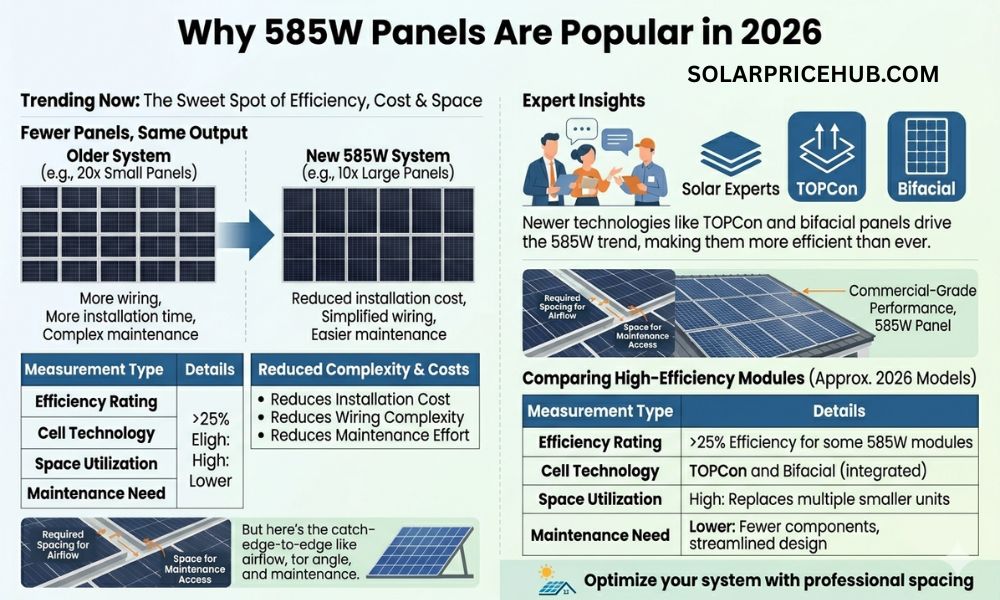

Why 585W Panels Are Popular in 2026?
There’s a reason why 585W solar panels are trending right now. They strike the perfect balance between efficiency, cost, and space utilisation. Instead of installing 20 small solar panels, you can install 10 large ones and get the same output. This reduces installation cost, wiring complexity, and maintenance effort.
Experts in the solar industry also point out that newer technologies like TOPCon and bifacial panels have made these large panels more efficient than ever. Some 585W panels now reach over 25% efficiency, which is impressive for commercial-grade modules.

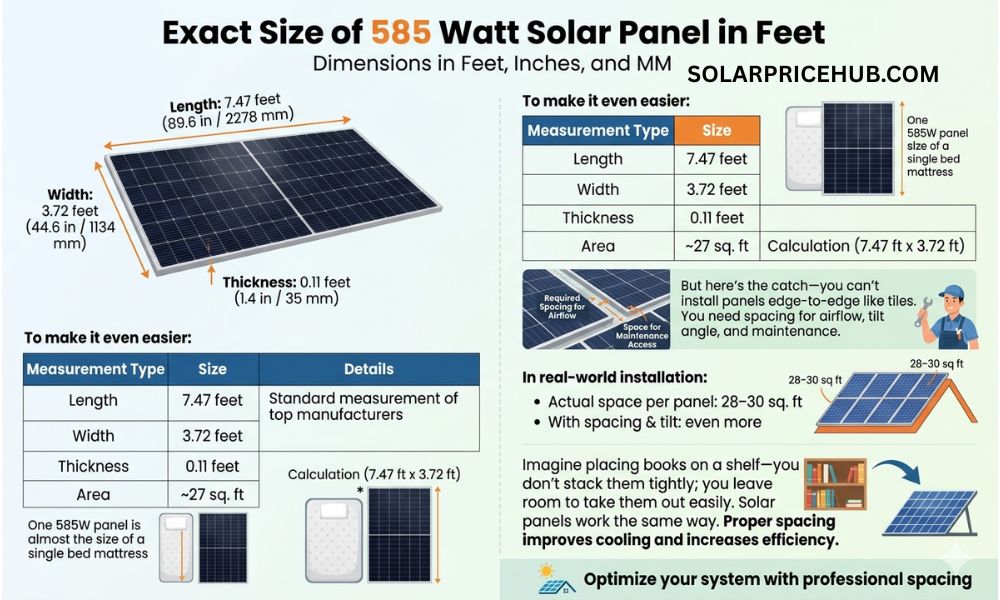

Exact Size of 585 Watt Solar Panel in Feet
Dimensions in Feet, Inches, and MM
Let’s get straight to the main question: What is the size of a 585-watt solar panel in feet?
According to the latest data:
- Length: 7.47 feet
- Width: 3.72 feet
- Thickness: 0.11 feet
These dimensions come from standard measurements of 2278 × 1134 × 35 mm, which are commonly used by top manufacturers.
To make it even easier:
| Measurement Type | Size |
|---|---|
| Length | 7.47 feet |
| Width | 3.72 feet |
| Thickness | 0.11 feet |
| Area | ~27 sq. ft |
So basically, one 585W panel is almost the size of a single bed mattress. That gives you a clear idea of how much space it will take on your roof.
Area Covered Per A 585 Watt Solar Panel
A single 585W solar panel covers approximately 26–27 square feet of space, where you need to install mostly at roof. You need a little bit of spacing for airflow, a tilt angle of mostly 30, and maintenance.
In real-world installation:
- Actual space per panel: 28–30 sq. ft
- With spacing & tilt: even more
Imagine placing books on a shelf—you don’t stack them tightly; you leave room to take them out easily. Solar panels work the same way. Proper spacing improves cooling and increases efficiency.
585W Solar Panel Dimensions by Brand (2026)
Different manufacturers have slightly different dimensions. Here is a comparison of major brands:
| Brand | Model | Length (mm) | Width (mm) | Thickness (mm) | Weight (kg) | Efficiency |
|---|---|---|---|---|---|---|
| Jinko Solar | Tiger Neo JKM585N-72HL4-V | 2278 | 1134 | 35 | 31.2 | 22.26% |
| Longi Solar | Hi-MO 6 LR5-72HTH-585M | 2278 | 1134 | 35 | 30.5 | 22.10% |
| JA Solar | Deep Blue 4.0 JAM72D40-585 | 2278 | 1134 | 30 | 28.0 | 22.30% |
| Canadian Solar | HiKu7 CS7N-585MS | 2278 | 1134 | 35 | 31.8 | 22.20% |
| Trina Solar | Vertex S+ TSM-585NEG21C.20 | 2278 | 1134 | 35 | 31.6 | 22.40% |
Key takeaway: All major brands use the same standard 2278 × 1134 mm footprint. The main differences are in efficiency, weight, and cell technology (TOPCon vs PERC vs Bifacial).
Full Technical Specifications of a 585W Solar Panel
A. Electrical Specifications
| Specification | Value |
|---|---|
| Peak Power (Pmax) | 585W |
| Voltage at Max Power (Vmp) | 42–43V |
| Current at Max Power (Imp) | 13.5–14A |
| Open Circuit Voltage (Voc) | 50–52V |
| Short Circuit Current (Isc) | 14.2–14.5A |
| Efficiency | 21% to 22.6% |
| Temperature Coefficient (Pmax) | -0.29%/°C |
| Operating Temperature | -40°C to +85°C |
B. Physical Specifications
| Specification | Value |
|---|---|
| Length | 2278 mm (7.47 ft) |
| Width | 1134 mm (3.72 ft) |
| Thickness | 30–35 mm (1.18–1.38 in) |
| Weight | 28–32 kg (62–70 lbs) |
| Frame | Anodized aluminum |
| Front Glass | 3.2 mm tempered, anti-reflective |
| Cells | 144 monocrystalline half-cut cells |
| Junction Box | IP68 rated |
| Connector | MC4 compatible |
C. Warranty
| Warranty Type | Duration |
|---|---|
| Product/Material warranty | 12–15 years |
| Power output warranty | 25–30 years |
| Power degradation (Year 1) | Max 2% |
| Annual degradation (Year 2–25) | Max 0.45%/year |
| Output at Year 25 | ≥84.95% |
How Much Roof Space Do You Need for 585W Panels?
This is one of the most practical questions buyers ask. Here is the roof space you need based on system size:
| System Size | No. of 585W Panels | Min Roof Space (sq ft) | Suitable For |
|---|---|---|---|
| 3 kW | 5–6 panels | ~170 sq ft | Small home, 2–3 fans + lights |
| 5 kW | 8–9 panels | ~265 sq ft | Medium home, 1 AC + appliances |
| 10 kW | 16–18 panels | ~520 sq ft | Large home or small commercial |
| 15 kW | 25–26 panels | ~760 sq ft | Commercial, tube well |
| 20 kW | 34–35 panels | ~1,020 sq ft | Large commercial, factory |
Important: These numbers include a 10–15% buffer for panel spacing, airflow gaps, and mounting frame overhang. Do not install panels edge-to-edge.
Ideal Tilt Angle in Pakistan
For maximum output in Pakistan, install panels at a 25° to 30° tilt angle, facing south. This gives you the best sun exposure year-round. A shadow from even a small object like a water tank can reduce output significantly — even a 5% shadow can drop your string’s production by 20–30%.
Standard Specifications of 585W Solar Panels
Electrical Specifications
A 585W solar panel is not just about size—it’s also packed with powerful electrical features, and here we will discuss them.
- Voltage (Vmp): Around 43V
- Current (Imp): Around 13–14A
- Open Circuit Voltage (Voc): Around 52V
- Efficiency: 21% to 22.6%
These numbers may look technical, but they matter when choosing an inverter and battery. Think of it like matching a charger to your phone—if it’s not compatible, it won’t work efficiently.
Physical Build and Weight
These huge solar panels are designed for durability and long life. Most 585W solar panels have some properties, and here we will discuss them as follows.
- Weigh around 30–32 kg
- Have tempered glass protection
- Use aluminum frames
- Are weather-resistant
Because of their size and weight, they require strong mounting structures. You can’t treat them like small panels—they need proper planning and professional installation.

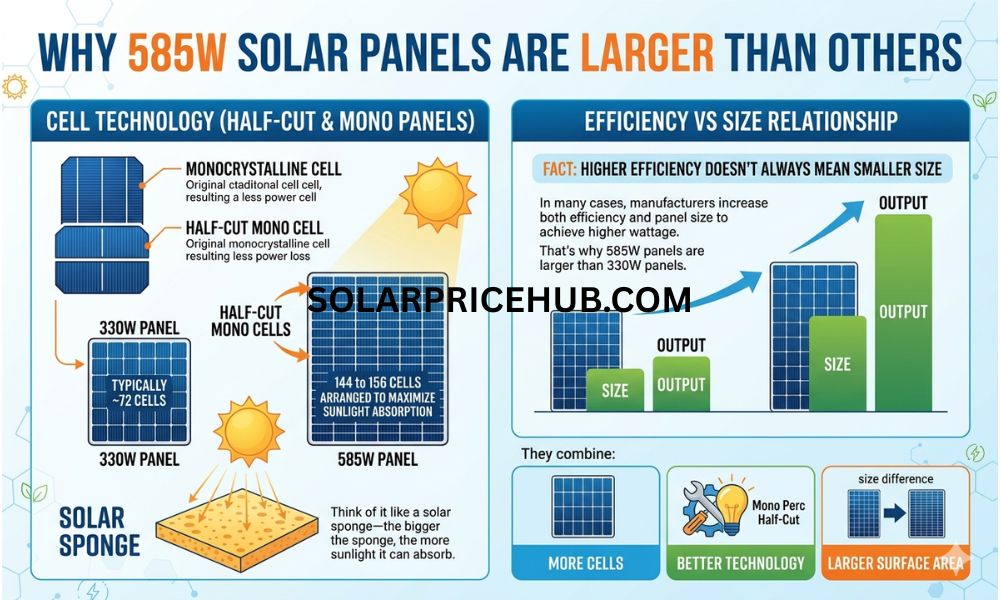

Why 585W Solar Panels Are Larger Than Others
Cell Technology (Half-Cut & Mono Panels)
Modern 585W panels use monocrystalline half-cut cells, which are more efficient but require more surface area. These panels typically contain 144 to 156 cells, arranged to maximise sunlight absorption.
Think of it like a solar sponge—the bigger the sponge, the more sunlight it can absorb.
Efficiency vs Size Relationship
Here’s an interesting fact: higher efficiency doesn’t always mean smaller size. In many cases, manufacturers increase both efficiency and panel size to achieve higher wattage.
That’s why 585W panels are larger than 330W panels. They combine:
- More cells
- Better technology
- Larger surface area

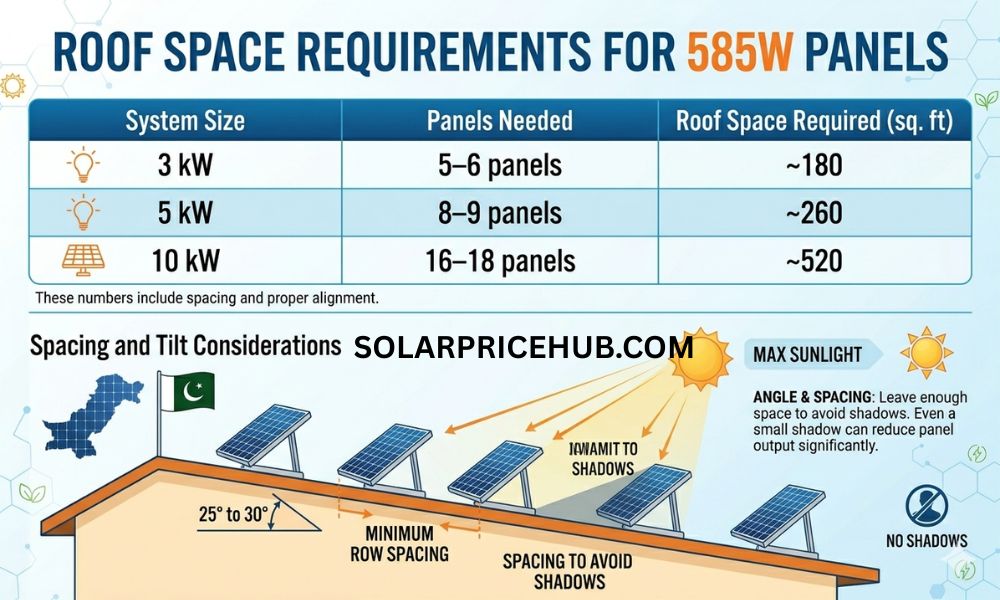

Roof Space Requirements for 585W Panels
Space Needed for Different System Sizes
Let’s break it down in a practical way:
| System Size | Panels Needed | Roof Space Required |
|---|---|---|
| 3 kW | 5–6 panels | ~180 sq. ft |
| 5 kW | 8–9 panels | ~260 sq. ft |
| 10 kW | 16–18 panels | ~520 sq. ft |
These numbers include spacing and proper alignment.
Spacing and Tilt Considerations
You can’t just place panels flat on the roof and expect the best results. The angle matters a lot. In Pakistan, the ideal tilt angle is usually between 25° and 30° for maximum sunlight exposure.
Also, leave enough space between rows to avoid shadows. Even a small shadow can reduce panel output significantly.
Easy Installation Tips for Large Solar Panels
There, we will also discuss Easy Installation Tips for Large Solar Panels, and these will help us to easily install large solar panels at home.
Roof Strength and Mounting
Before installing 585W panels, check your roof strength. These panels are heavier and larger, so weak roofs may need reinforcement.
Use high-quality mounting structures to avoid damage during strong winds or storms.
Best Direction and Angle
Always install panels facing south (in Pakistan) for maximum sunlight. Avoid shaded areas, such as near trees or water tanks.
Top Advantages and Disadvantages of 585W Solar Panels
There, we will also discuss completely Top Advantages and Disadvantages of 585W Solar Panels.
Key Benefits
- Higher power output
- Fewer panels required
- Lower installation cost
- Better efficiency
Possible Limitations
- A larger size requires more space
- Heavier weight
- Not suitable for small roofs
Buying Guide for 585 Watt Solar Panels
When buying a 585W solar panel, here are some tips to understand that will help us to get the best ones.
- Choose Tier-1 brands
- Check warranty (25 years recommended)
- Compare efficiency ratings
- Verify certifications
Final words
The 585-watt solar panel is a high-efficiency module typically used for large-scale residential and commercial projects, such as tube wells, heavy loads, and machinery.
A 585 Watt Solar Panel Size in Feet, approximately 7.5 feet in length by 3.7 feet in width, is used worldwide. It is the biggest with a high-wattage solar panel in the world.
A 585 Watt Solar Panel is the biggest and highest-wattage solar panel that can generate enough power to run many appliances at home. It can generate 585 watts at a time, which is enough to run some fans, lights, chargers, and an air water cooler.
