A Solar Tube Well, also known as a Solar Water Pump, is the most trending, popular, and demanding tool to drain water from the underground water table of the earth from the energy produced by solar panels.
A Solar Tube Well Price ranges from just 1,20,000 to 20,00,000 rupees, which totally depends on the size, or HP in Pakistan nowadays in 2026. A Solar Tube Well Price is very small or low, for example, 1HP, 3HP, 5HP, and 10HP, also known as 3 to 4 inches.
A Solar Tube Well Price is very high for a large tube, like 6 Inches or 15HP, 20HP, and 25HP, also known as 5 to 6 inches in Pakistan nowadays in 2026. For that higher HPs OR Inches price is very higher as 10,00,000 to 20,00,000 rupees in 2026.
In this article, we will completely discuss its working, features, benefits, installation tips, buying tips, savings, and factors that affect its pricing.
All HP (3HP, 5HP, 10HP, 15HP, 20HP, 25HP) Solar Tube Well Prices in Pakistan 2026
| HP System | Suitable Land Area | Latest Price (PKR) |
| 3 HP | 1–2 Acres | Rs. 350,000 |
| 5 HP | 3–5 Acres | Rs. 550,000 |
| 10 HP | 7–10 Acres | Rs. 880,000 |
| 15 HP | 10–15 Acres | Rs. 1,150,000 |
| 20 HP | 15–20 Acres | Rs. 1,650,000 |
| 25 HP | More than 20 Acres | Rs. 2,150,000 |
What is a Solar Tube Well OR Solar Pump?
A solar tube well is a water pumping system that uses energy from solar panels to extract groundwater for irrigation, livestock, or domestic use. Instead of relying on electricity or diesel, it runs on sunlight, making it an eco-friendly and cost-effective solution, especially for farmers in areas with limited power supply.
Why Farmers Need Solar Tube Well? The electricity bills are very high and increasing every year, so the poor farmers install solar tube wells to get free water. The farmers now save millions of rupees every year and thousands of rupees every month.

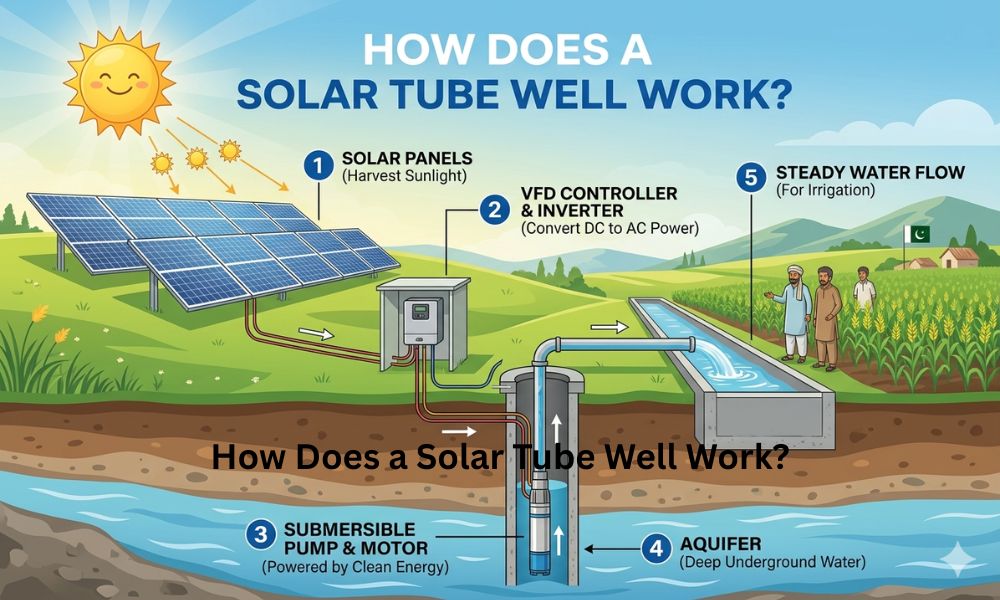

How Does a Solar Tube Well Work?
A solar tube well works on the energy produced by solar panels, then this energy or electricity runs the motor or pump then this pump drains water from the surface of the earth. Here, we will discuss the complete solar tube well working step by step as follows.
1. Solar Panels Capture Sunlight
Solar panels (photovoltaic panels) absorb sunlight and convert it into DC (direct current) electricity, and this electricity runs the pump to drain water.
2. Inverter/Controller Converts Power
The DC electricity passes through a controller or inverter, which regulates the power and converts it into AC (if required) to run the pump.
3. Water Pump Operates
The electric motor powers a submersible or surface pump installed in the tube well. This pump draws water from underground.
4. Water is Delivered for Use
The pumped water is then supplied to fields through pipes or stored in tanks for later use. In this way, the farmers irrigate their fields from this tube well.
Understanding HP Ratings and Water Flow in Solar Tube Wells
It is very informative news that HP ratings and water flow in solar tubewells are essential for selecting the right system for your agricultural needs in Pakistan in 2026.
Horsepower (HP) determines the motor’s strength, directly affecting how efficiently water is pumped from underground sources.
| HP System | Suitable Land Area | Recommended Use |
| 3 HP | 1–2 Acres | Small vegetable farms, orchards, and basic domestic/livestock water supply. |
| 5 HP | 3–5 Acres | Medium-sized agricultural plots and garden nurseries with moderate water needs. |
| 10 HP | 7–10 Acres | Large farms requiring consistent flow for crops like wheat, cotton, or maize. |
| 15 HP | 10–15 Acres | Heavy-duty irrigation for thirsty crops (e.g., rice, sugarcane) and larger acreage. |
| 20 HP | 15–20 Acres | Extensive commercial farming and fields with deep water tables (200+ feet). |
| 25 HP | More than 20 Acres | Industrial-scale agriculture, community water projects, and massive estates. |

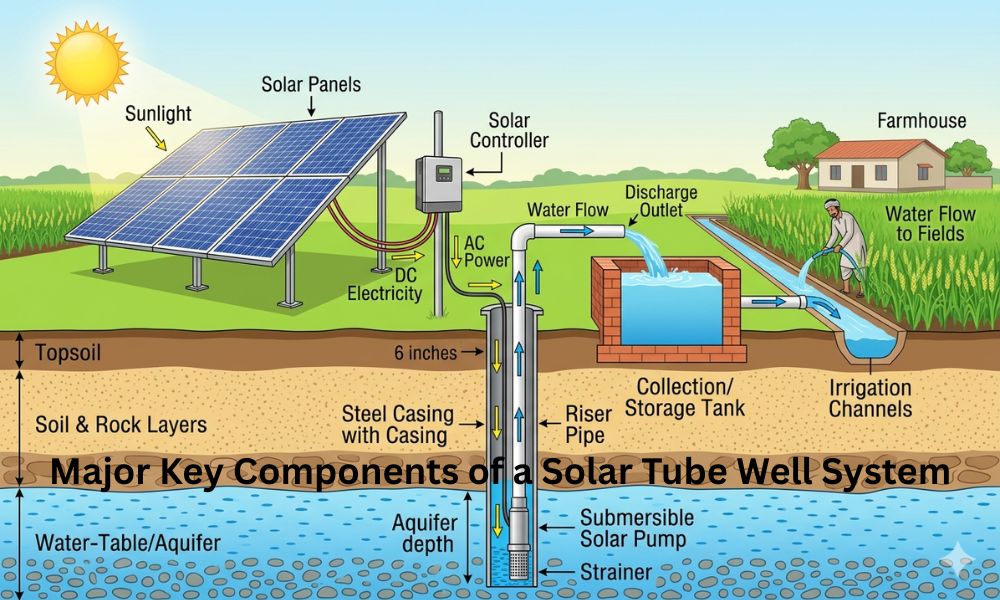

Major Key Components of a Solar Tube Well System
There are some Major Key Components of a Solar Tube Well System, and here we will explore them in some detail as follows.
Solar Panels
Solar panels are the main source of energy in a solar tube well system. They capture sunlight and convert it into electricity using photovoltaic technology. The efficiency and number of panels directly affect the system’s performance and water output.
Solar Inverter/Controller
The solar inverter or controller manages the electricity produced by the panels. It converts DC power into AC (if required) and controls the speed of the pump. This ensures smooth operation, protects the system, and improves overall efficiency.
Water Pump (Submersible or Surface)
The water pump is responsible for lifting water from underground. Submersible pumps are used for deep water levels, while surface pumps are suitable for shallow sources. The pump size (HP) determines how much water can be delivered.
Mounting Structure
The mounting structure holds the solar panels in place. It is usually made of steel or aluminum and positioned at an optimal angle to capture maximum sunlight. Strong structures ensure durability and better performance in harsh weather conditions.
Wiring and Pipes
Wiring connects all system components, allowing electricity to flow from panels to the pump. Pipes are used to transport water from the tube well to fields or storage tanks. High-quality wiring and pipes ensure safe operation and long-term reliability.
3 HP Solar Tube Well Price Pakistan 2026:
| Component / Detail | Specification | Estimated Price / Notes |
|---|---|---|
| 3 HP Solar Tube Well Price | Complete system | Rs. 330,000 – Rs. 350,000 (3.3 to 3.5 lakh) |
| Land Coverage | Irrigation capacity | Up to 2 acres per day (in full sunlight conditions) |
| Solar Panels Requirement | 6 panels (540W–585W each) | Brands: LONGI, JINKO, CANADIAN, TRINA, MAXPOWER (Tier 1) |
| VFD / Inverter | 5 kW VFD | Required to control pump speed and convert power |
| Mounting Structure | L2 or pole structure | Used to install and support solar panels |
| Water Pump / Motor | 3 HP tubewell motor | Used for groundwater pumping and irrigation |
5 HP Solar Tube Well Price Pakistan 2026
| Component / Detail | Specification | Estimated Price / Notes |
|---|---|---|
| 5 HP Solar Tube Well Price | Complete system | Rs. 530,000 – Rs. 550,000 (5.3 to 5.5 lakh) |
| Land Coverage | Irrigation capacity | Up to 4 acres per day (in full sunlight, especially in summer) |
| Solar Panels Requirement | 10 panels (540W–585W each) | Tier 1 brands: LONGI, JINKO, CANADIAN, TRINA, MAXPOWER |
| VFD / Inverter | 5 kW VFD | Required for controlling pump operation and power conversion |
| Mounting Structure | L2 or pole structure | Supports and secures solar panels |
| Water Pump / Motor | 5 HP tubewell motor | Used for groundwater extraction and irrigation |
10 HP Solar Tube Well Price Pakistan 2026
| Component / Detail | Specification | Estimated Price / Notes |
|---|---|---|
| 10 HP Solar Tube Well Price | Complete system | Rs. 830,000 – Rs. 850,000 (8.3 to 8.5 lakh) |
| Land Coverage | Irrigation capacity | Up to 10 acres per day (in full sunlight, especially in summer) |
| Solar Panels Requirement | 20 panels (540W–585W each) | Tier 1 brands: LONGI, JINKO, CANADIAN, TRINA, MAXPOWER |
| VFD / Inverter | 11 kW VFD | Required for power control and pump operation |
| Mounting Structure | L2 or pole structure | Used for stable installation of solar panels |
| Water Pump / Motor | 10 HP tubewell motor | Used for the stable installation of solar panels |
15 HP Solar Tube Well Price Pakistan 2026
| Component / Detail | Specification | Estimated Price / Notes |
|---|---|---|
| 15 HP Solar Tube Well Price | Complete system | Rs. 1,130,000 – Rs. 1,150,000 (11.3 to 11.5 lakh) |
| Land Coverage | Irrigation capacity | Up to 15 acres per day (in full sunlight, especially in summer) |
| Solar Panels Requirement | 30 panels (540W–585W each) | Tier 1 brands: LONGI, JINKO, CANADIAN, TRINA, MAXPOWER |
| VFD / Inverter | 15 kW VFD | Required for controlling power and pump operation |
| Mounting Structure | L2 or pole structure | Provides stable support for solar panel installation |
| Water Pump / Motor | 15 HP tubewell motor | Used for efficient groundwater extraction and irrigation |
20 HP Solar Tube Well Price Pakistan 2026
| Component / Detail | Specification | Estimated Price / Notes |
|---|---|---|
| 20 HP Solar Tube Well Price | Complete system | Rs. 1,630,000 – Rs. 1,650,000 (16.3 to 16.5 lakh) |
| Land Coverage | Irrigation capacity | Up to 18 acres per day (in full sunlight, especially in summer) |
| Solar Panels Requirement | 40 panels (540W–585W each) | Tier 1 brands: LONGI, JINKO, CANADIAN, TRINA, MAXPOWER |
| VFD / Inverter | 25 kW VFD | Required for controlling and operating the pump efficiently |
| Mounting Structure | L2 or pole structure | Provides strong support for large-scale solar panel installation |
| Water Pump / Motor | 20 HP tubewell motor | Used for high-capacity groundwater pumping for irrigation |
25 HP Solar Tube Well Price Pakistan 2026
| Component / Detail | Specification | Estimated Price / Notes |
|---|---|---|
| 25 HP Solar Tube Well Price | Complete system | Rs. 20,00,000 – Rs. 21,00,000 (20 to 21 lakh) |
| Land Coverage | Irrigation capacity | Up to 25 acres per day (in full sunlight, especially in summer) |
| Solar Panels Requirement | 50 panels (540W–585W each) | Tier 1 brands: LONGI, JINKO, CANADIAN, TRINA, MAXPOWER |
| VFD / Inverter | 30 kW VFD | Required for efficient control and operation of the pump |
| Mounting Structure | L2 or pole structure | Provides strong support for large-scale solar panel installation |
| Water Pump / Motor | 25 HP tubewell motor | Used for high-capacity groundwater extraction and irrigation |
Major Benefits of Solar Tubewells for Farmers
There are also many Major Benefits of Solar Tubewells for Farmers, and here we will explore them one by one as follows.
1. Zero Electricity Bills
One of the biggest advantages of a solar tubewell must be that it eliminates monthly electricity costs. Once the system is installed, it uses free sunlight to generate power, allowing farmers to run their irrigation system without worrying about rising energy bills.
2. One-Time Investment
A solar tubewell requires an initial investment, but it pays off in the long run. With a lifespan of 20–25 years, farmers can enjoy free energy for decades, making it a highly cost-effective solution for irrigation.
3. Continuous Power Supply
Solar tubewells provide a reliable power source during daylight hours. Farmers no longer have to depend on unreliable grid electricity or face load shedding, ensuring smooth and timely irrigation whenever needed.
4. Increased Crop Yield
With a consistent and timely water supply, crops receive proper irrigation, which improves growth and productivity. This ultimately leads to higher crop yields and better profits for farmers.
5. Environment-Friendly
Solar energy is clean and renewable, which helps reduce carbon emissions and environmental pollution. By using solar tubewells, farmers contribute to sustainable agriculture and a greener future.
Factors Affecting Solar Tubewell Prices in Pakistan
There are also many Factors Affecting Solar Tubewell Prices in Pakistan, and here we will explore them one by one as follows.
Solar Panel Quality and Wattage
This is a very important factor that quality and wattage of solar panels play a major role in determining the overall cost. High-efficiency panels generate more electricity and last longer, but they are more expensive. Lower-quality panels may reduce the initial cost but can affect performance and durability over time.
Type of Pump (AC/DC, Submersible)
This is also a very important factor that type of water pump also impacts the price. Submersible pumps, which are used for deep water levels, are generally more costly than surface pumps. Similarly, AC and DC pump systems have different price ranges depending on efficiency and application.
Mounting Structure (L2 or Pole)
The mounting structure used to install solar panels affects the total system cost. L2 structures are usually more affordable, while pole-mounted structures require additional materials and labor, making them more expensive.
Installation and Labor Cost
There are also many Installation charges that vary depending on the complexity of the system and the expertise of the installer. Professional installation ensures better performance and safety but adds to the overall cost of the solar tubewell system.
Land Size and Water Depth
The size of the land and the depth of groundwater significantly influence system requirements. Larger farms and deeper water levels require more powerful pumps and bigger solar systems, which increases the overall cost.
Brand and Warranty
The brand and warranty of components such as solar panels, inverters, and pumps also affect pricing. Well-known brands with longer warranties usually cost more but provide better reliability, efficiency, and long-term value.
Solar Tube Well Scheme, Punjab Government 2026
This is also very informative news that the Government of Pakistan has launched a lot of good subsidy schemes to help poor farmers transition to solar energy, most notably the Chief Minister Solarization Program in Punjab in 2026.
It is also important to note that under these initiatives, the government covers a significant portion of the total cost, often between 67% and 80%, a huge subsidy, leaving the poor farmer to pay only a small fraction of the investment during the installation of a tube well.
This is the most important and helpful information that a farmer opting for a 10 HP to 20 HP system can receive grants ranging from Rs. 500,000 to over Rs. 1,000,000 from the government nowadays.
These helping schemes are designed to reduce the high costs of diesel and the frustration of electricity load-shedding, allowing for consistent crop irrigation and higher monthly profits.
Final Thoughts
A Solar Tube Well Price ranges from just 1,20,000 to 20,00,000 rupees, which totally depends on the size, or HP in Pakistan nowadays in 2026. A Solar Tube Well Price is very small or low, for example, 1HP, 3HP, 5HP, and 10HP, also known as 3 to 4 inches.
A Solar Tube Well Price is very high for a large tube, like 6 Inches or 15HP, 20HP, and 25HP, also known as 5 to 6 inches in Pakistan nowadays in 2026. For that higher HPs OR Inches price is very higher as 10,00,000 to 20,00,000 rupees in 2026.
FAQs
2-inch solar tube well system Price in Pakistan 2026
The 2-inch solar tube well system Price in Pakistan generally ranges from Rs. 180,000 to Rs. 250,000, depending on the horsepower (HP) of the motor and the number of solar panels included
For a standard 2-inch delivery setup, a 2HP to 3HP system is the most common choice for small-scale irrigation or farm use, like 1 to 2 acres in Pakistan. This solar tube well is best for very small farmers.
3-inch solar tube well system Price in Pakistan 2026
The 3-inch solar tube well system Price in Pakistan generally ranges from Rs. 5,30,000 to Rs. 7,50,000, depending on the horsepower (HP) of the motor and the number of solar panels included
For a standard 3-inch delivery setup, a 5HP to 7.5HP system is the most common choice for small-scale irrigation or farm use, like 2 to 3 acres in Pakistan. This solar tube well is best for very small farmers.
4-inch solar tube well system Price in Pakistan 2026
A 4-inch solar tube well system in Pakistan is a high-capacity setup typically used for large-scale agriculture. These systems usually require a 10HP to 15HP motor.
The estimated price for a complete 4-inch system ranges from Rs. 10,20,000 to Rs. 14,50,000, depending on the horsepower and the number of panels used.
5-inch solar tube well system Price in Pakistan 2026
The total price for a complete 5-inch system generally ranges from Rs. 1,150,000 to Rs. 1,850,000. A 5-inch solar tube well system in Pakistan is considered a high-power commercial or large-scale agricultural setup. These systems typically require a 15HP to 25HP motor.
6-inch solar tube well system Price in Pakistan 2026
A 6-inch solar tube well system is an industrial-grade agricultural solution in Pakistan, capable of moving massive volumes of water for 25 acres per day. These systems are typically powered by 25HP to 40HP motors. The total price for a complete 6-inch system currently ranges from Rs. 1,950,000 to Rs. 2,900,000.
