It is verified data that to run a 1-ton DC inverter AC, we need 3 to 4 high-wattage solar panels (550W–580W each) nowadays in 2026. These 3 to 4 solar panels cover a total energy capacity of about 1.5 kW to 2.0 kW during the daytime. Aiko 780W solar panels, only 2 needed to meet this requirement to run an AC of 1 ton.
Load shedding in Pakistan makes the summer very hard. A 1-ton AC stops working when the light goes out. Many people in Pakistan are now using solar panels to run their air conditioners without WAPDA. But the big question is, how many solar panels do you really need for a 1-ton AC? This guide gives you the exact answer in simple words.
Quick Answer: You need 4 to 5 solar panels of 400W to run a 1-ton inverter AC during the day in Pakistan. This gives you 1600W to 2000W of solar power, which is enough for most modern inverter ACs.

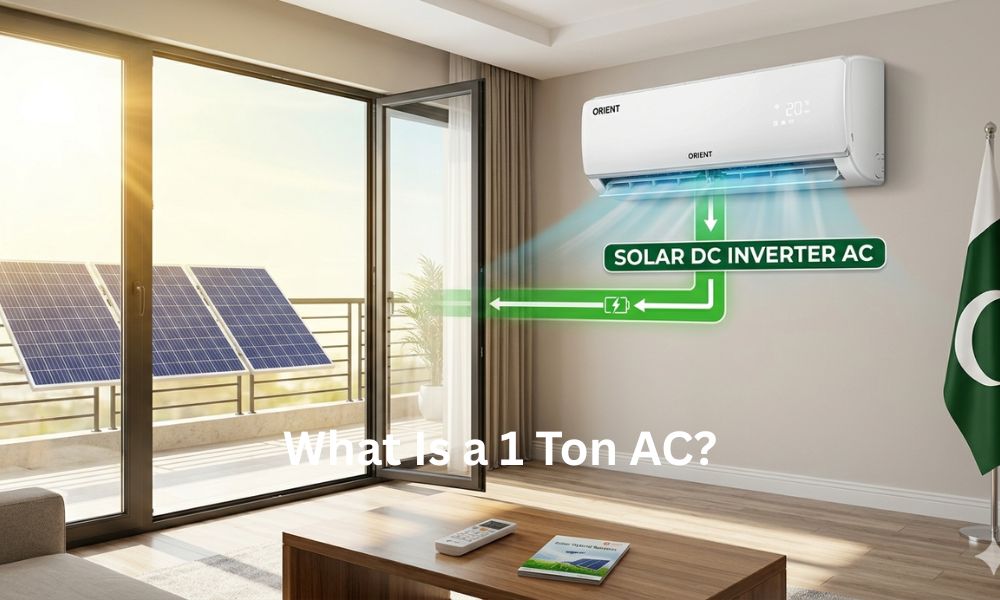

What Is a 1 Ton AC?
A “1-ton” AC does not mean the machine weighs 1 ton. It means the AC can cool a room with the power equal to melting 1 ton of ice in 24 hours. In Pakistan, a 1-ton AC is used for small rooms, usually 100 to 150 square feet.
There are two types of 1-ton AC in Pakistan:
| Type | Power Use (Watts) | Best for Solar? |
|---|---|---|
| Inverter AC (1 Ton) | 700W – 1000W (average) | Yes – Very Good |
| Non-Inverter AC (1 Ton) | 1200W – 1500W (always full) | Hard – Needs More Panels |
My Tip: Always use an inverter AC with solar energy because it uses less power and works better with solar energy.
How Much Power Does a 1 Ton Inverter AC Use?
This is the most important thing to know before buying solar panels. A 1-ton inverter AC does not always use the same amount of power. When the room is very hot, it uses more. When the room cools down, it uses less.
| Condition | Power Used |
|---|---|
| Starting up (peak) | 1500W – 2000W |
| Cooling a hot room | 900W – 1200W |
| Maintaining cool room | 400W – 700W |
| Average use per hour | 800W – 1000W |
My personal experience: So, on average, a 1-ton inverter AC in Pakistan uses about 800 to 1000 watts per hour. This helps us calculate how many solar panels we need.

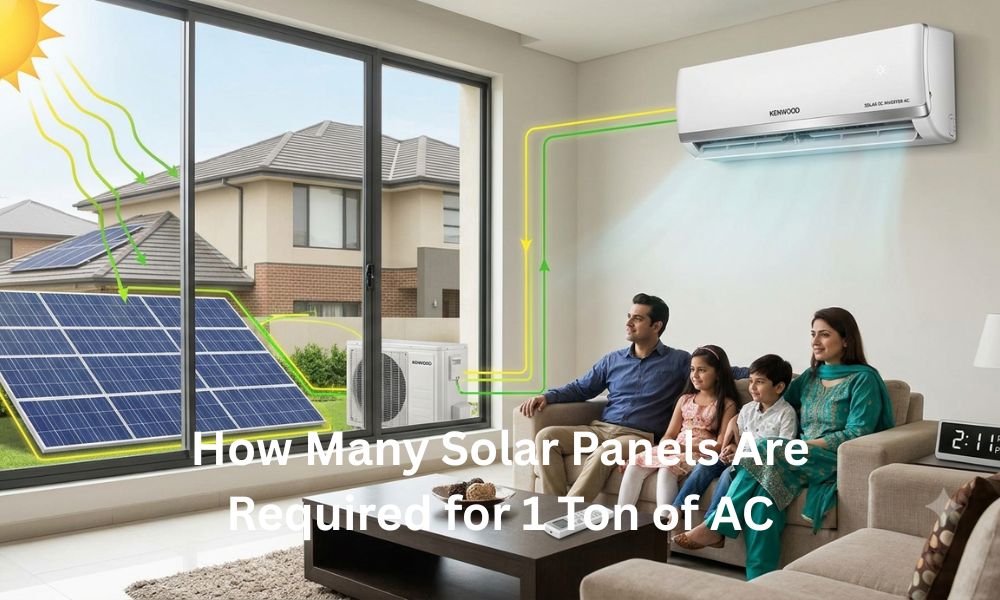

How Many Solar Panels Are Needed for 1 Ton AC?
To answer this, we do a simple calculation. In Pakistan, solar panels get good sunlight for about 5 to 6 hours per day. One 400W solar panel gives you 400 watts in that time.
Simple Calculation
If your 1-ton AC uses 1000W per hour, and you want it to run during the day using solar:
- 1 panel of 400W gives 400W of power
- You need at least 1000W to run the AC
- So 1000W ÷ 400W = 2.5 panels minimum
- But you also need extra panels for startup power and other things at home
- So the right number is 4 to 5 panels of 400W
Final Answer: Get 4 panels of 400W (1600W total) as a minimum. For more comfort and safety, get 5 panels of 400W (2000W total).
Panel Count by AC Type
| AC Type | Panels Needed (400W each) | Total Solar Power |
|---|---|---|
| 1 Ton Inverter AC | 4 – 5 panels | 1600W – 2000W |
| 1 Ton Non-Inverter AC | 6 – 7 panels | 2400W – 2800W |
What Size Solar Panels Are Best for 1 Ton AC in Pakistan?
In 2026, most people in Pakistan will buy 400W to 585W solar panels. Here is what works best:
| Panel Size | Panels Needed | Total Watts | Good For |
|---|---|---|---|
| 300W panels | 6 – 7 panels | 1800W – 2100W | Small roof space |
| 400W panels | 4 – 5 panels | 1600W – 2000W | Most common choice |
| 500W panels | 3 – 4 panels | 1500W – 2000W | Less panels, more power |
| 540W–585W panels | 3 panels | 1620W – 1755W | Modern N-Type panels |
My Pro Tip: 400W solar panels are the most popular in Pakistan in 2026. Brands like Jinko, LONGi, JA Solar, and Canadian Solar all make great 400W panels available in Pakistan.
What Solar Inverter Do You Need for 1 Ton AC?
The solar inverter is the brain of your system. It takes DC power from the solar panels and turns it into AC power for your AC. For a 1-ton AC, you need the right inverter size.
| Inverter Type | Good For AC? | Works at Night? |
|---|---|---|
| On-Grid Inverter (1.5kW – 3kW) | Yes (day only) | No |
| Hybrid Inverter (2kW – 3kW) | Yes (day + battery) | Yes with battery |
| Off-Grid Inverter (2kW – 3kW) | Yes (with battery) | Yes with battery |
For most homes in Pakistan where load shedding is a problem, a 2kW or 3kW hybrid inverter is the best choice. It runs your 1-ton AC during the day from solar and charges the battery for nighttime use.
Important Note: Make sure the inverter you buy can handle the startup surge of your AC. A 1-ton AC can pull 2x to 3x normal power when it starts. Always buy a 2kW or bigger inverter for a 1-ton AC.

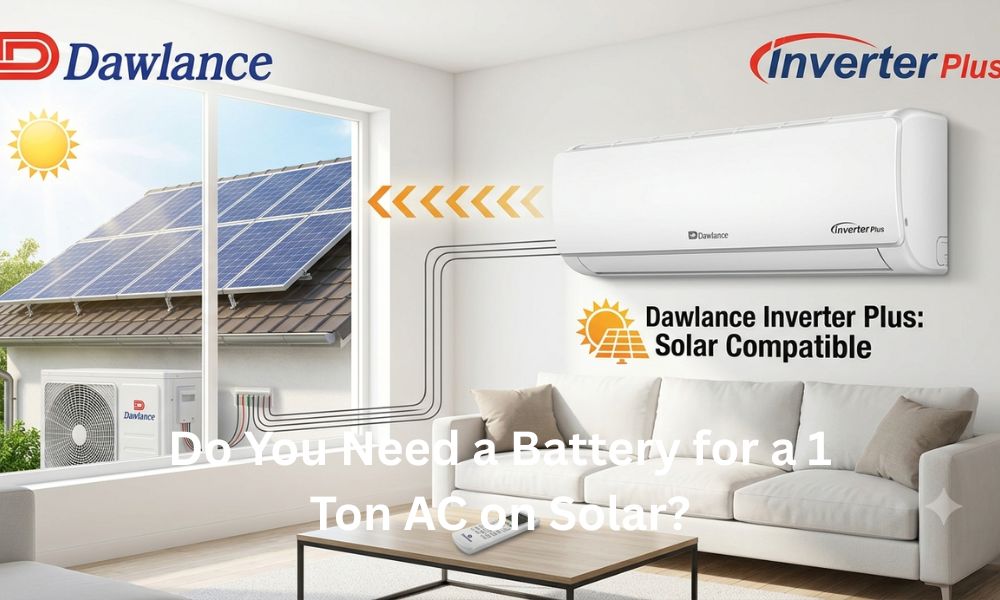

Do You Need a Battery for a 1 Ton AC on Solar?
If You Want to Run AC Only During the Day (No Battery)
You do not need a battery. Use an on-grid or hybrid inverter. Your AC will run on solar during the day. When the sun goes down, WAPDA power takes over. This is cheaper.
If You Want to Run AC at Night Too (With Battery)
You need a big battery. A 1-ton AC uses about 800W to 1000W per hour. To run it for 4 hours at night, you need 4 to 5 kWh of battery storage. That means 2 to 3 large LiFePO4 batteries (100Ah–200Ah) — which adds a lot to the cost.
Best Option for Pakistan: Run the AC on solar during the daytime (10 AM to 5 PM) and switch to WAPDA or battery at night. This saves the most money.
Complete Solar System Price for 1 Ton AC: What You Need
| Item | Recommended Size | Purpose |
|---|---|---|
| Solar Panels | 4–5 x 400W panels | Make electricity from sun |
| Solar Inverter | 2kW – 3kW hybrid | Convert solar to AC power |
| Battery (optional) | 200Ah LiFePO4 | Store power for night |
| Panel Stand | Galvanized iron stand | Hold panels on roof |
| DC Wire | 4mm or 6mm cable | Connect panels to inverter |
| AC Distribution Box | Standard load box | Protect your home wiring |
Price of Solar System for 1 Ton AC in Pakistan (2026)
Here is the estimated cost of a solar system to run a 1-ton AC in Pakistan in 2026. Prices may vary by city and brand.
| System Type | What’s Included | Estimated Price (PKR) |
|---|---|---|
| Basic Day-Only System | 4x 400W panels + 2kW on-grid inverter | Rs. 150,000 – Rs. 185,000 |
| Hybrid Day + Partial Night | 5x 400W panels + 3kW hybrid inverter + 1 battery | Rs. 220,000 – Rs. 280,000 |
| Full Off-Grid System | 5x 400W panels + 3kW inverter + 2–3 batteries | Rs. 350,000 – Rs. 480,000 |
Note: Prices in Lahore, Karachi, and Rawalpindi may differ from those in smaller cities. Always get 3 quotes from local solar companies before buying.
How Much Money Can You Save with Solar for 1 Ton AC?
In Pakistan, running a 1-ton AC on WAPDA for 8 hours a day in summer can cost a lot. Let us see the savings:
| Item | On WAPDA | On Solar |
|---|---|---|
| Power used (per day) | 8 units (kWh) | 0 (free from sun) |
| Cost per unit (WAPDA) | Rs. 35–50 | Rs. 0 |
| Daily cost | Rs. 280 – Rs. 400 | Rs. 0 |
| Monthly cost (30 days) | Rs. 8,400 – Rs. 12,000 | Rs. 0 |
| Summer saving (5 months) | — | Rs. 42,000 – Rs. 60,000 |
Most solar systems pay back their cost in just 2 to 3 years in Pakistan. After that, you save money every year for 25+ years.

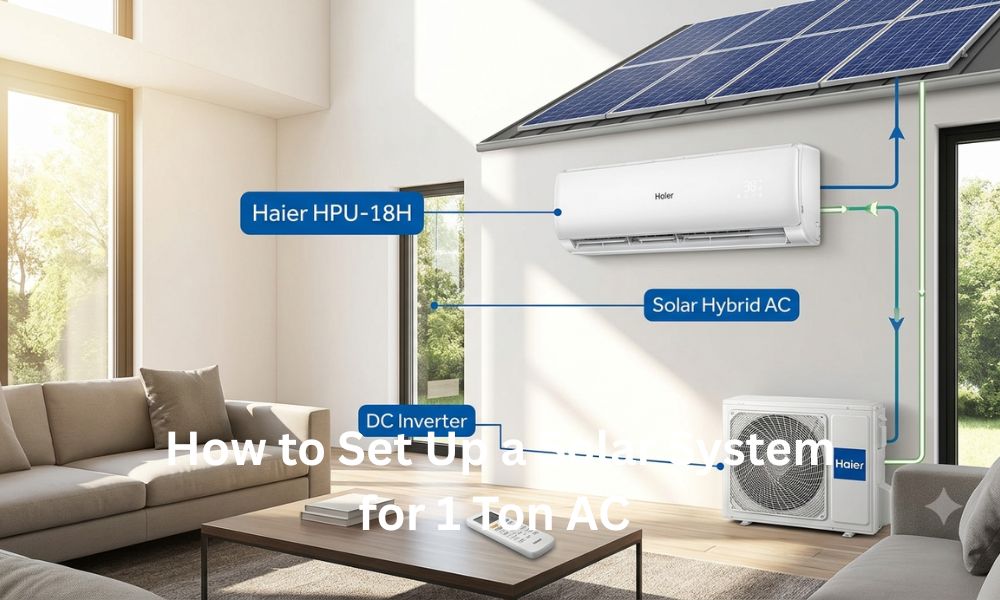

How to Set Up a Solar System for 1 Ton AC 2026
1. Estimating Power Requirements
A standard 1-ton inverter AC typically consumes between 1,000 W to 1,400 W while running at a stable frequency, though it may have higher startup surges.
- Hourly Consumption: Assume an average draw of 1.2 kWh per hour of operation.
- Daily Usage: If you plan to run the AC for 6 hours daily, you need at least 7.2 kWh of energy production per day.
2. Recommended System Architecture
For a reliable setup, a Hybrid Solar System is generally recommended. It allows you to draw power from the panels during the day, store excess energy in batteries for evening use, and maintain a connection to the grid for backup during low-sunlight periods or high-load surges.
| Component | Recommendation |
| Inverter | 3 kW to 5 kW inverter |
| Solar Panels | 2 kW to 3 kW capacity |
| Batteries | LiFePO4 (Lithium Iron Phosphate) |
3. Key Technical Considerations for 2026
- Inverter Efficiency: Use a Pure Sine Wave Inverter to prevent damage to the AC’s sensitive electronic control board. High-harmonic content from cheaper inverters can lead to premature motor failure.
- Variable-Speed Compressors: Ensure your AC is an “Inverter” model. Fixed-speed (non-inverter) ACs have massive current spikes upon startup that can cause standard solar inverters to trip or shut down.
- MPPT Controllers: Ensure your inverter includes an integrated Maximum Power Point Tracking (MPPT) controller to optimize power harvesting during varying solar irradiance levels throughout the day.
- Load Scheduling: Use smart energy management features to run your AC during peak sunshine hours (10 AM – 3 PM) to minimize battery cycling and maximize direct self-consumption.
4. Implementation Steps
- Site Assessment: Ensure your roof has unshaded space for at least 15–20 square meters of panel mounting.
- Professional Load Matching: Have a technician verify the “Locked Rotor Amps” (LRA) of your specific AC model to ensure the chosen inverter can handle the initial start-up load.
- Safety & Compliance: Use high-quality DC surge protection devices (SPDs) and circuit breakers to protect the system from grid faults or lightning strikes.
- Monitoring: Install an app-based monitoring system (standard on most 2026-model inverters) to track your daily “Solar-to-AC” consumption ratio and optimize your usage patterns.
Disclaimer: This guidance is for informational purposes. Always consult with a certified solar installer in your local area to conduct a site survey, as factors like regional isolation levels, roof orientation, and local grid policies (Net Metering) will significantly affect your specific system design.
Common Mistakes to Avoid
- Buying too few panels: 2 or 3 panels are not enough for a 1-ton AC. Always get at least 4 x 400W panels.
- Using a non-inverter AC: It uses too much power and needs 6 to 7 panels. Switch to an inverter AC first.
- Buying a small inverter: A 1kW inverter cannot run a 1-ton AC. Always buy 2kW or bigger.
- Skipping panel cleaning: Dirty panels give 20% to 30% less power. Clean them every 2 weeks.
- Buying cheap Chinese inverters: Stick with brands that have a good warranty and after-sales service in Pakistan.
Frequently Asked Questions (FAQ)
How many solar panels are required for 1 ton AC?
You need 4 to 5 solar panels of 400W each to run a 1-ton inverter AC in Pakistan. That gives you 1600W to 2000W of total solar power, which is enough for daytime use.
Can a 1-ton AC run on solar in Pakistan?
Yes! A modern 1-ton inverter AC can run easily on solar during the day. You need 4 to 5 panels of 400W and a good 2kW or 3kW hybrid inverter.
How many units does a 1-ton AC use per hour?
A 1-ton inverter AC uses about 0.8 to 1.0 units (kWh) per hour on average. A non-inverter 1-ton AC can use up to 1.5 units per hour.
What is the price of a solar system for a 1-ton AC in Pakistan?
A basic solar system to run a 1-ton AC in Pakistan costs around Rs. 150,000 to Rs. 280,000 in 2025. The price depends on panel brand, inverter type, and whether you add battery backup.
How many solar panels do I need for a 1.5-ton AC?
For a 1.5-ton inverter AC, you need 6 to 7 solar panels of 400W. A 1.5 ton AC uses about 1200W to 1500W on average, which needs more solar capacity.
Can I run a 1-ton AC on a 1kW solar system?
No. A 1kW solar system is too small for a 1-ton AC. The AC can pull up to 2000W on startup. You need at least a 2kW system with 4 to 5 panels.
Can a 1-ton AC run on solar without a battery in Pakistan?
Yes, but only during the day. With an on-grid or hybrid inverter and 4 to 5 panels, your AC will run on solar power during the day. At night, it will switch to WAPDA or stop if you have no battery.
Which solar panel brand is best for AC in Pakistan?
In Pakistan, Jinko Solar, LONGi Solar, JA Solar, and Canadian Solar are the most trusted brands for running AC on solar. These brands give strong performance in high heat and come with 25-year power warranties.
Final Words
Running a 1 ton AC on solar in Pakistan is a smart idea in 2025. Load shedding is not going away. WAPDA bills keep getting higher. Solar power is now more affordable than ever in Pakistan.
To run a 1-ton inverter AC on solar, you need 4 to 5 solar panels of 400W and a 2kW or 3kW hybrid inverter. This system will cover your AC during the day and save you Rs. 40,000 to Rs. 60,000 every summer.
The system pays for itself in 2 to 3 years. After that, the electricity is free for 25 years. If you are still on the fence, think of it this way — every summer you wait, you are paying WAPDA when the sun could be doing it for free.
